Introduction
Working with acrylic can be incredibly rewarding, whether you’re crafting custom signs or tackling a creative DIY project. However, drilling into this material requires a bit of specific knowledge to get it right. Using the wrong technique or tools can quickly lead to cracks and ruined material. This guide will walk you through everything you need to know, from understanding the material itself to choosing the perfect drill bits for the job. Get ready to achieve clean, professional holes with precision every time.
Understanding Acrylic, Plexiglass, and Perspex
You’ve likely heard the terms acrylic, Plexiglass, and Perspex used in various contexts. It can be a little confusing, but the good news is that they all refer to the same type of plastic material. Plexiglass and Perspex are simply brand names for polymethyl methacrylate (PMMA), which is what we commonly call acrylic.
No matter which name you use, the material behaves the same way when you work with it. Its unique properties mean that you can’t just grab standard twist drill bits and expect perfect results. Understanding this is the first step toward successful drilling.
Acrylic vs Plexiglass vs Perspex
At its core, there is no chemical difference between acrylic, Plexiglass, and Perspex. Think of it like a brand of facial tissue being called by its popular brand name, they all serve the same function. Plexiglass and Perspex are brand names for acrylic sheets, so any advice for drilling one applies to the others. The key is to treat them all as a heat-sensitive, brittle plastic.
This is why the drill bits you use matter so much. Acrylic drill bits differ significantly from those used for metal or wood. Standard bits are designed to aggressively cut and pull material away. When used on acrylic, this grabbing action creates immense stress, leading to cracks.
In contrast, drill bits made for acrylic have a special tip geometry. Their cutting edges are much less aggressive and are designed to scrape or shave the material away smoothly. This prevents the bit from catching and significantly reduces the friction and heat that cause melting and stress fractures, ensuring a clean hole.
Physical properties of Acrylic Sheet
Acrylic sheets boast remarkable physical properties that make them ideal for various applications. Characterized by their transparency, they have a light transmission rate exceeding 92%, making them an excellent substitute for glass. Acrylic is also renowned for its impact resistance, being ten times stronger than glass, which minimizes the risk of shattering during the drilling process.
Thermal expansion is another essential property; acrylic expands and contracts with temperature variations, necessitating careful consideration during fabrication. The material’s lightweight nature reduces handling difficulties, and its flexibility allows for intricate designs. With a relatively low density, acrylic sheets can be easily maneuvered, making them a favorite among DIY enthusiasts. These properties demand appropriate drill bits that cater to the material’s unique characteristics, ensuring clean, precise holes without chipping or overheating.
Common Problems When Drilling Acrylic
Drilling acrylic might seem simple, but several common problems can arise if you’re not careful. The most frequent issues are chipping and cracking around the drill hole. This is almost always caused by using the wrong drill bit or applying too much pressure. Standard drill bits “bite” into the acrylic, causing it to fracture. Another common problem is heat buildup, which can melt the acrylic, creating a messy, distorted hole and rough edges.
To prevent chipping or cracking, the best drilling technique involves a combination of the right tools and patience. Use a drill bit designed for plastics and set your drill to a low speed. Apply only gentle, steady pressure and let the bit do the work. Pausing to clear away shavings and cool the area with water is also crucial, especially on thicker sheets. This gentle approach minimizes stress and heat, giving you a clean hole every time.
Now, let’s explore what features make a drill bit ideal for working with acrylic.
What Makes the Best Drill Bit for Acrylic?
The best drill bit for acrylic features a sharp tip and a smooth cutting edge to minimize cracking and chipping. Additionally, high-speed steel or carbide materials provide durability and heat resistance, while specific designs like brad point bits ensure precision and clean holes in acrylic surfaces.
Drill Bit Materials
The material of your drill bit plays a role in its performance and longevity when drilling acrylic. While standard high-speed steel (HSS) bits can be modified for acrylic, bits made from harder materials often provide cleaner results and last longer. Carbide drill bits, for instance, are extremely durable and hold their sharp edge well, making them an excellent choice for frequent or professional use.
When looking for the best acrylic drill bit, you’ll find options specifically marketed for plastics. Manufacturers like Röhm, the maker of PLEXIGLAS®, often recommend specific types, such as spiral bits with a geometry designed for acrylic. These are engineered to scrape the material cleanly rather than gouging it.
While a specific brand isn’t always necessary for a DIY project, investing in a drill bit set designed for plastics is a wise move. These bits have the correct geometry right out of the box, saving you the trouble of modifying a standard bit. Remember to keep the protective film on your acrylic to complement the clean cut from your high-quality bit.
Drill Bit Tip Geometry
Understanding the geometry of the drill bit tip is crucial for achieving clean, precise holes in acrylic materials. For optimal results, look for tips designed for specific applications, such as brad point bits which feature a sharp center point for better accuracy. This point helps in positioning the drilling, reducing the chances of chipping or cracking at the edge of the sheet.
Another preferred geometry includes angled cutting edges, which efficiently cut through acrylic without generating significant heat. This is essential in preventing overheating during the drilling process. Maintaining low speeds can help manage thermal expansion, ultimately leading to a higher quality borehole. By utilizing these specialized geometries, professionals can ensure that their acrylic projects, whether crafting signs or intricate designs, turn out flawlessly.
Flute & Chip Removal Design
Effective chip removal is crucial when drilling acrylic to achieve the highest quality results. Drill bits designed for acrylic often feature specialized flute geometries that enhance the efficiency of shavings removal. The unique design minimizes heat buildup, reducing the risk of chipping or melting during the drilling process.
In addition to extracting chips effectively, the optimal flute design allows for smoother boreholes, which is essential when creating precise holes in acrylic sheets. Using a drill bit intended for this material not only protects against rough edges but also promotes a clean exit side of the hole, ensuring the finished project meets professional fabrication standards. For DIY projects, employing the right tools with appropriate chip removal designs can significantly improve the overall quality.
Best Drill Bit Types for Acrylic (Top Choices)
For drilling acrylic, choosing the right drill bit is crucial to achieve clean and precise holes. Brad point bits and step drill bits are top choices due to their sharp edges and ability to minimize chipping. These bits enable you to drill smoothly, especially in thicker sheets. Always consider using a piece of scrap wood underneath your work to support the acrylic and avoid rough edges. Adding a protective film can also enhance the drilling process, ensuring beautiful results in your projects.

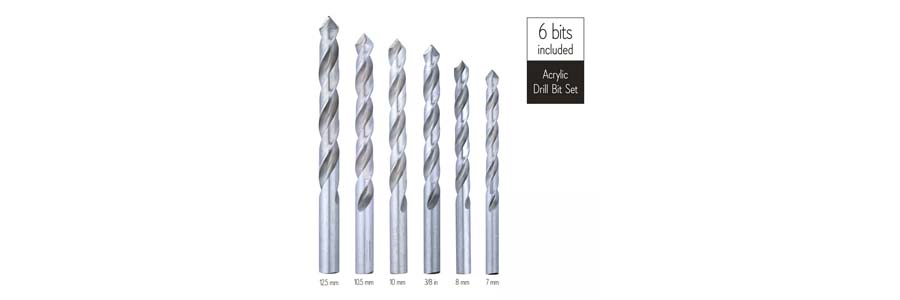

Acrylic-Specific Drill Bits – Best Drill Bit for Acrylic
Acrylic sheets require specific drilling techniques and tools to ensure precision and prevent damage. Acrylic-specific drill bits, such as brad point bits or step drill bits, are designed with specialized geometry that minimizes chipping and overheating during the drilling process. These bits create cleaner holes by reducing the internal stresses that typically lead to cracking.
Utilizing these tools along with a gentle approach significantly enhances the drilling experience. Employing lower speeds while applying much pressure helps maintain control over heat buildup, which can deform acrylic. Always remember to have a piece of scrap wood beneath your acrylic sheet to catch shavings and provide additional support. For optimal results, a protective film should cover the acrylic, safeguarding its surface from scratches and ensuring a smooth finish.
Brad Point Drill Bits – Best Drill Bit for Acrylic Sheet
Brad point bits, typically used for woodworking, are a great alternative for drilling an acrylic sheet. Their standout feature is the sharp spur at the center, which allows you to place the bit precisely on your marked drilling points. This prevents the bit from “walking” or wandering as you start the hole.
The sharp outer spurs of the brad point bit score the perimeter of the hole before the main cutting edges engage. This action helps create a cleaner entry hole and reduces the chance of chipping on the surface. While a specialized acrylic bit is always the best choice, a brad point bit is a significant improvement over a regular twist drill bit.
You don’t absolutely need a special drill bit if you’re in a pinch, but using a regular metal bit is risky. A brad point bit offers a much safer and more effective alternative if you don’t have an acrylic-specific one on hand. Just remember to use a slow speed and light pressure.
Twist Drill Bits (Modified for Plastic)
So, can you use regular metal drill bits on acrylic? The short answer is yes, but only if they are modified. Standard twist drill bits have cutting edges that are too aggressive for plastic and will almost certainly cause cracking. However, you can grind the cutting edges to create a scraping action suitable for acrylic.
To modify a twist bit, you need to flatten the two cutting edges to create a zero-rake angle. This removes their “bite” and allows them to shave the material smoothly. While this is a viable option for experienced DIYers with a bench grinder, it can be tricky to get right.
If you must use standard twist drill bits without modification, take extreme precautions. Cover the area with masking tape, start with a very small pilot hole, use the slowest possible drill speed, and apply almost no pressure. This method is not ideal and carries a high risk of cracking, but it can work for less critical applications.
Carbide Drill Bits – Best Drill Bit for Plexiglass
When you need durability and exceptional performance, especially for drilling plexiglass, carbide drill bits are a top-tier option. Carbide is a much harder material than high-speed steel (HSS), meaning these bits stay sharper for much longer. Their sharp, resilient cutting edge provides an incredibly clean cut with minimal friction and heat.
This makes them ideal for professional settings or for anyone who drills acrylic frequently. While they are more expensive, their longevity and the quality of the holes they produce can make them a worthwhile investment. The clean cutting action of carbide is particularly beneficial for preventing micro-cracks that can compromise the strength of the material.
For making small holes in acrylic sheets, start with a bit around 1/8 inch (or 3mm) in diameter. This size is large enough to be stable but small enough to serve as a pilot hole if you need to enlarge it later. Carbide drill bits are available in these small sizes and provide the precision needed for detailed work.

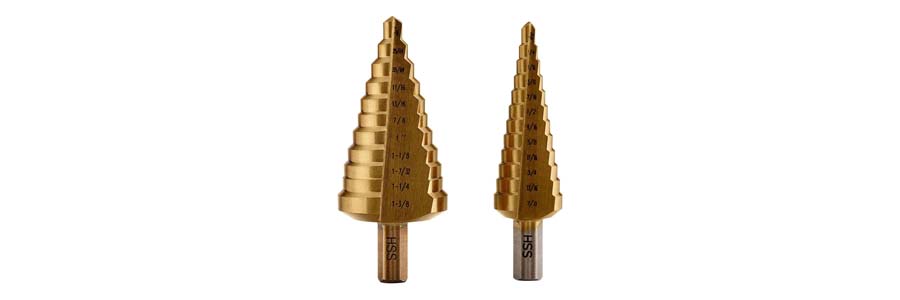

Step Drill Bits – Best Bit for Drilling Plexiglass
For drilling clean holes in thin sheets of plexiglass, step drill bits are one of the best tools for the job. These cone-shaped bits have multiple “steps” of increasing diameter. This design allows you to drill a variety of hole sizes with a single bit and automatically deburrs the hole as you go.
The gradual increase in diameter during the drilling process puts very little stress on the acrylic, making them excellent for preventing cracks. Each step shaves a thin layer of material, ensuring a smooth, clean, and perfectly cylindrical hole. You can easily stop when you reach the desired diameter, preventing you from accidentally making the hole too large.
In contrast, spade drill bits are generally not recommended for acrylic. While the source material suggests they can be used with care, they tend to be aggressive and can cause significant chipping, especially on the exit side. Step drill bits offer a much safer and more reliable drilling process for a larger bit size.

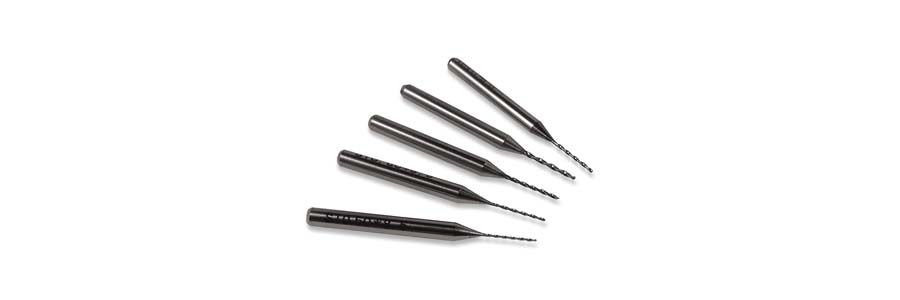

Micro Drill Bits for Precision Acrylic Work
For delicate tasks or any DIY project requiring extreme precision, micro drill bits are the solution. These bits are designed for drilling very small-diameter holes, often less than 1mm. They are perfect for intricate craft projects, model making, or creating fine mounting points where a standard-sized screw is too large.
When using micro drill bits, stability is everything. A drill press is highly recommended to ensure the bit enters the acrylic perfectly straight. Due to their small size, these bits are fragile and can break easily if subjected to sideways pressure. Use a very slow speed and extremely gentle feed rate.
The best technique to prevent chipping with these tiny bits is to let the bit’s rotation do all the work. Apply just enough pressure to keep it engaged with the material. A steady hand, a secure workpiece, and a slow, patient approach are the keys to success with micro drill bits.
Best Drill Bit for Acrylic Sheet (Thin vs Thick)
The thickness of your acrylic sheet is a major factor in selecting the appropriate drill bit and technique. Thin sheets are more prone to flexing and chipping on the exit side, while thick acrylic presents challenges with heat buildup and chip removal. Choosing the right bit for the job will save you time and material.
For thin sheets (under 1/4 inch or 6mm), bits that minimize pressure and stress are ideal. For thick acrylic, the focus shifts to bits that can handle deep cuts and manage heat effectively. For any small holes, a 1/8 inch (3mm) bit is a great starting point, whether as a pilot hole for a larger size or as the final hole itself.
Sheet Thickness | Recommended Drill Bit Type | Key Considerations |
Thin (under 1/4″) | Step Drill Bits, Conical Bits | These bits create clean holes with minimal risk of chipping on the exit side. The gradual cutting action is ideal for fragile, thin sheets. |
Thick (over 1/4″) | Acrylic-Specific Bits, Modified Twist Bits | Focus on bits with good flute design for chip removal. You must pause to cool the bit and hole with water to prevent melting and heat buildup. |
Best Drills & Settings for Drilling Acrylic
Having the right drill bit is only half the battle; you also need the right drill machine and settings. While nearly any standard drill can work, some offer more control and stability, which is crucial for acrylic. A drill press, for example, provides unmatched stability and is ideal for perfect, straight holes.
The two most important settings on your drill are speed and feed rate. For acrylic, the rule is simple: low speed and a slow, gentle feed. This combination minimizes friction and heat, which are the main culprits behind cracked or melted acrylic. The following sections will cover the best drill types and specific speed recommendations.
Drill Machine Types
Selecting the right drill machine is crucial for achieving clean and accurate holes in acrylic. Options range from handheld drills to more sophisticated drill presses. Handheld drills are versatile, making them suitable for various applications and DIY projects, but may require a steadier hand to prevent chipping or overheating.
Drill press machines provide enhanced precision and control, especially for larger projects requiring higher accuracy. They allow for consistent speed, ensuring that overheating and internal stresses are minimized during the drilling process. Additionally, using a drill press facilitates better alignment and reduces the risk of rough edges or heat buildup, leading to better overall results. Utilizing the right drill machine not only enhances efficiency but ultimately ensures smoother, cleaner holes in acrylic materials.
Speed & Feed Recommendations
Optimal speed and feed rates are crucial for achieving clean, precise holes when drilling acrylic. A low speed, typically ranging from 1,000 to 1,500 RPM, minimizes heat buildup, reducing the risk of chipping and melting. Maintaining this slower rotational speed helps dissipate the heat generated during the drilling process, ensuring the integrity of the material remains intact.
Feed rate also requires careful consideration; applying gentle pressure while advancing the drill bit prevents excessive force that could compromise the acrylic. Start with a small pilot hole to guide the larger drill bit, and ensure the drilling area is adequately cooled, possibly using a spray bottle to mitigate any overheating. This careful balance of speed and feed can yield professional results and extend the lifespan of your high-quality drill bits.
Pro Tips to Drill Acrylic Without Cracking
Utilizing the right techniques can significantly enhance your drilling experience and minimize the risk of cracking acrylic. Start by securing the acrylic sheet to a stable workbench using clamps, ensuring it is held firmly to avoid movement during the drilling process. Applying gentle pressure is crucial; excessive force can lead to chipping and overheating.
Before tackling larger drill bits, create a small pilot hole with a brad point bit, which guides the larger bit and reduces internal stresses. Employing a spray bottle to keep the drilling area cool helps manage heat buildup, preventing thermal expansion issues. Lastly, applying masking tape can protect the edges and reduce rough finishes, ensuring your acrylic project maintains a polished look.
Common Mistakes to Avoid
Knowing what not to do is just as important as knowing what to do. Many common problems when drilling acrylic, like cracks and rough edges, stem from a few easily avoidable mistakes. The most common error is drilling too fast. High RPMs generate too much heat, leading to melting and stress fractures. Another mistake is applying too much force, which can cause the bit to grab and crack the material.
Failing to support the acrylic properly is another path to failure. If the sheet is not clamped to a firm backing board, it can vibrate and crack, especially as the bit breaks through the exit side of the hole. Also, don’t forget that the protective film serves as an extra layer of protection—drilling on a bare surface increases the risk of scratches and chips.
Avoid High Speeds: Always use a low RPM setting.
Don’t Apply Force: Let the drill bit do the work with gentle pressure.
Never Drill Unsupported: Always use a backing board to prevent chipping on the exit side.
About FOXWOLL
FOXWOLL is a professional drill bit manufacturer and supplier in China. With a focus on innovation and quality, we produce a complete range of drill bits for metal, wood, masonry, and composite materials, covering both industrial and DIY applications. Our products are manufactured using high-grade steel and advanced heat-treatment technology to ensure sharp cutting edges, excellent concentricity, and long service life. FOXWOLL supports OEM/ODM projects, customized sizes and coatings, and large-volume orders for global distributors and tool brands. Backed by strict quality control and efficient production capacity, we are committed to providing reliable drill bit solutions with consistent quality, competitive factory pricing, and professional export service.
Conclusion
In conclusion, choosing the right drill bit for acrylic is essential for achieving clean and precise results. Understanding the various options available, from acrylic-specific drill bits to brad point and carbide bits can significantly enhance your drilling experience. Remember, each type of drill bit serves a specific purpose, whether you’re working with thin or thick acrylic sheets. By following the pro tips and avoiding common mistakes, you’ll be well on your way to mastering the art of drilling acrylic without cracking it. If you have further questions or need personalized advice, feel free to reach out for a free consultation. Happy drilling!
Frequently Asked Questions
Can I use a regular drill bit for acrylic sheets?
It’s not recommended. Regular drill bits are too aggressive and will likely crack the acrylic sheet. If you must use one, it should be modified to scrape instead of cut. For an unmodified bit, use masking tape, drill a small pilot hole first, and use extremely slow speeds. An acrylic drill is always the best choice.
What drilling technique helps avoid chipping or cracking acrylic?
To avoid cracking, use a slow drilling process with gentle pressure. Mark your drilling points and secure the acrylic with clamps to a backing board. Use a plastic-specific bit, apply low speed, and consider using water for cooling on thicker pieces. Let the bit shave the material away slowly rather than forcing it through.
Is it safe to use a drill press with acrylic materials?
Yes, a drill press is the safest and most reliable tool for drilling acrylic. It provides stability and ensures the bit is perfectly perpendicular to the flat surface. Just be sure to clamp your material securely to a piece of scrap wood on the drilling area and keep the protective film on.
Can I use regular metal drill bits on acrylic?
Using unmodified metal drill bits on acrylic is very risky as their aggressive angle can cause chipping and cracking. To minimize risk, work far from the edge of the sheet, keep the masking film on, use very low speeds, and start with a tiny pilot hole. A modified or plastic-specific bit is much safer.
What drill bit angle is best for plexiglass?
The best drill bit geometry for plexiglass features a tip angle between 60 and 90 degrees. This less aggressive point scrapes the material instead of grabbing it. Step drill bits naturally incorporate a gentle angle, making them an excellent choice for drilling holes of various diameters without needing a pilot hole.
Should I drill acrylic dry or with coolant?
For thin acrylic (under 1/4 inch), you can often get away with drilling dry if you use a slow speed. For thicker sheets, cooling is essential to prevent heat buildup and melting. Use a spray bottle with water to periodically cool the bit and the hole as it’s being drilled, especially for larger acrylic signs.
