Introduction
Selecting the right grinding disc is crucial for achieving optimal results in metalwork. An appropriate disc not only enhances the effectiveness of your angle grinder but also ensures the safety of the user. Various materials, such as zirconia alumina and aluminum oxide, play a significant role in determining the disc’s performance on hard materials versus softer surfaces.
In addition to choosing the right abrasive grains, understanding grit size is essential; higher numbers denote finer finishes while lower numbers are suited for rougher tasks. With the right grinding disc, whether for deburring, polishing, or shaping metal surfaces, the project can progress smoothly, reducing the potential for accidents and improving overall efficiency. Prioritizing the selection of the best grinding disc becomes vital for quality craftsmanship.
Understanding Metal Grinding Discs
At its core, a metal grinding disc is a wheel made from bonded abrasive grains. These sharp particles are what do the actual work of removing material from a metal surface. Think of it as extremely tough sandpaper spinning at high speeds. The most common abrasive material you’ll find is aluminum oxide, which is a versatile and cost-effective choice for general-purpose metal grinding.
It’s important not to confuse a grinding disc with a cutting disc. While they look similar, a grinding disc is much thicker. This thickness allows it to withstand the side pressure needed for shaping, smoothing, and cleaning surfaces. In contrast, a thin cutting disc is designed only for slicing straight through metal and can be dangerous if used for grinding. Understanding this basic difference is the first step toward using your angle grinder correctly.
How to Choose the Best Grinding Disc for Metal
Selecting the ideal grinding disc can feel overwhelming with so many options available. However, you can narrow down your choices by focusing on a few key features. The right disc depends on the type of metal you’re working with, the task you need to perform, and the specific angle grinder you own.
To make the best choice, you need to consider factors like the material of the abrasive grains, the disc size and thickness, and its grit size. Each of these elements plays a vital role in how the disc performs on different metal surfaces and helps you achieve the professional results you’re looking for. The following sections will guide you through what to look for.
1. Material & Abrasive Type
Choosing the right material and abrasive type is crucial for optimizing performance when grinding metal. Various materials, such as zirconia alumina and aluminum oxide, offer distinct advantages; zirconia alumina, for example, excels at tackling hard materials and delivers a longer lifespan. Ceramic abrasives, on the other hand, are designed for high-speed applications and are especially effective on stainless steel, providing a smoother finish while minimizing wear.
Additionally, the abrasive type influences the grinding disc’s effectiveness on softer surfaces and coatings. For instance, flap discs are ideal for blending and finishing, while depressed center wheels are often preferred for deburring and heavy material removal. By understanding these variations, you can ensure a more precise and efficient operation tailored to your specific project.
2. Disc Size & Thickness
Choosing the appropriate disc size and thickness is essential for optimizing the grinding process and achieving a smoother finish on metal surfaces. Generally, a larger diameter allows for higher speed and efficiency, especially when dealing with tough materials like stainless steel or aluminum. Thicker discs are better suited for heavy-duty grinding tasks, providing durability against wear and tear, while thinner discs excel in cutting applications, offering precision in more delicate work.
The thickness also impacts the safety and performance of angle grinder attachments. With the right disc size, operators can enhance their workflow on metal bars or while deburring and finishing weld spatter. Always verify compatibility with your angle grinder to ensure optimal operation and safety gear usage, including a face shield, is crucial to prevent hazards.
3. Grit / Grain Size
Choosing the appropriate grit or grain size is essential for achieving the desired finish on metal surfaces. Coarse grit options, indicated by lower numbers, are ideal for aggressive material removal, effectively tackling heavy burrs and weld spatter. For instance, a grinding disc with a grit size of 36 or 60 can swiftly deburr welds or shape hard materials. Conversely, finer grits, such as 120 or 240, provide a smoother finish and are perfect for polishing and prepping surfaces for paint or other coatings.
Understanding the nature of the workpiece, whether it’s stainless steel, aluminum, or softer metals, also influences grain selection. It’s crucial to match the grit to the specific requirements of the task, ensuring optimal performance from the grinding disc while maintaining safety with appropriate personal protective equipment.
4. RPM Rating & Compatibility
Selecting the appropriate RPM rating is crucial for ensuring the safety and efficiency of your grinding tasks. Each angle grinder has a designated maximum RPM, which must not be exceeded to prevent accidents. Mismatched RPM with your angle grinder disc can lead to severe outcomes, including disintegration of the disc and potential injury.
Compatibility also extends beyond RPM to the size and attachment type of the disc. Disc size should align with the grinder’s specifications, ensuring a snug fit for optimal performance. Additionally, choosing the right abrasive material, like zirconia alumina or aluminum oxide, can enhance the grinding process, particularly on different metal surfaces. Being aware of these factors not only promotes a smoother finish but also aids in the longevity of both the disc and the tool.
5. Bonding Type
Numerous bonding types exist for grinding discs, each offering unique advantages depending on the tasks at hand. Resin bonding is popular for its durability and versatility, ideal for tasks involving metal surfaces, while rubber bonding provides flexibility, making it suitable for softer materials or intricate workpieces.
Ceramic bonding is another excellent option, known for its ability to withstand high temperatures, which is essential for grinding hard materials. Specialty options, such as fiberglass backing, enhance the strength and stability of the grinding discs, allowing for a smoother finish and improved longevity. Understanding the nuances of bonding types ensures optimal performance and safety when selecting the right grinding disc for various applications, ultimately elevating your grinding experience.
6. Wet vs Dry Use
Choosing between wet and dry use for grinding discs greatly impacts efficiency and the quality of the finish. Wet grinding utilizes water to cool the abrasive grains and suppress dust, making it ideal for delicate metals like aluminum and brass. This technique minimizes heat buildup, reducing the risk of warping, while promoting a smoother finish on soft metals.
In contrast, dry grinding is better suited for tougher materials, such as stainless steel or wrought iron, where high-speed removal is needed. Using an angle grinder with the right attachments is crucial, as dry grinding can generate significant heat and debris. Employing protective gear like safety goggles and a face shield is essential in both cases, ensuring a safe work environment while achieving optimal results.
Best Grinding Discs for Metal: Top Picks and Reviews
Now that you know what to look for, let’s dive into some top picks. We’ve sorted through product lists and reviews to find some of the best grinding disc options available today. Whether you’re smoothing welds on metal bars or cleaning up rough edges, there’s a disc here for you.
This list includes options from trusted brands known for their durable abrasive products, offering everything from heavy-duty performance to great value. These reviews will help you compare features and find the perfect grinding disc to add to your toolbox.
DEWALT is a brand renowned for durability and performance, and its DW4523 grinding wheel is no exception. This wheel is designed for general-purpose metal grinding and is a favorite among professionals and DIYers alike. Its high-performance aluminum oxide abrasive grains provide a long life and aggressive material removal, making it a reliable choice for tough jobs.
This grinding wheel features a 1/4-inch thin profile, offering a good balance between aggressive grinding and user control. Strong compatibility with standard angle grinders makes it a versatile addition to any workshop. Its construction is designed to deliver consistent performance from start to finish.
Designed for versatility and durability, the WORKPRO 20-Pack Metal Grinding Wheels stand out as essential tools for handling various metal surfaces. Featuring a unique combination of high-quality aluminum oxide and zirconia alumina abrasives, these grinding wheels effectively tackle tough materials while providing a smoother finish. The discs are engineered to fit standard angle grinder attachments, ensuring compatibility with most power tools.
With a disc thickness that supports high-speed grinding, the WORKPRO wheels excel in deburring and finishing applications, making them suitable for both professional and DIY projects. Each wheel is designed for consistent performance, maximizing efficiency while minimizing wear. For those needing precision in metalworking, these discs offer both resilience and reliability, resulting in a polished workpiece that meets high standards of quality.
3. Makita 5 Pack - 4-1/2" Grinding Wheels for Metal
Versatile and highly effective, the Makita 5 Pack of 4-1/2″ Grinding Wheels is tailored for numerous metalworking tasks. Featuring a durable construction, these wheels incorporate aluminum oxide abrasive grains, making them ideal for handling harder materials such as stainless steel and brass. Their thin profile supports enhanced precision while reducing the wear on your angle grinder disc, ensuring a smoother finish on various metal surfaces.
Designed for high-speed applications, these grinding wheels can tackle deburring, finishing, and even rust removal with ease. The ability to efficiently cut through weld spatter and coatings, combined with their compatibility with standard angle grinder attachments, makes them a reliable choice for both professionals and DIYers. Always remember to utilize appropriate personal protective equipment, including a face shield, when operating any grinding tools.
Recognized for its efficiency, the 3M Cubitron II Depressed Center Grinding Wheel stands out in metalworking applications. Engineered with precision, this grinding disc utilizes ceramic abrasives, ensuring a superior performance on a variety of metal surfaces, including stainless steel and carbon steel. The unique shape of the depressed center allows for effective deburring and finishing, making it ideal for polishing welds and removing burrs.
Additionally, this wheel’s high RPM rating ensures compatibility with standard angle grinder attachments, facilitating smooth operation at high speeds. Users often appreciate the ability to achieve a smoother finish while reducing heat generation, thanks to the advanced abrasive grain technology. For those seeking reliability and quality, the 3M Cubitron II is undeniably a leading choice for demanding projects.

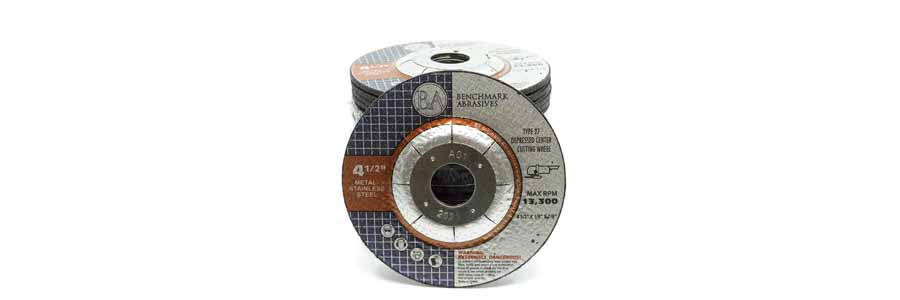

5. Benchmark Abrasives 4-1/2” Grinding Wheel
The Benchmark Abrasives 4-1/2” grinding wheel stands out for its impressive performance on various metal surfaces, including stainless steel and aluminum. Constructed with durable zirconia alumina abrasive grains, it excels in both grinding and deburring tasks, making it ideal for high-speed applications. The wheel’s design ensures a smooth finish while effectively tackling weld spatter and burrs, indicating its versatility for different projects.
Safety should never be overlooked; equipping the angle grinder with this grinding disc requires appropriate personal protective equipment like safety gear and a face shield. Its thin profile and efficient cutting capabilities allow for precision in shaping hard materials, ensuring optimal results whether you’re polishing metal bars or removing coatings. This grinding wheel is a must-have for any serious metalworking enthusiast.
How to Choose the Right Grinding Disc for Metal Projects
Choosing the right grinding disc ultimately comes down to matching the tool to the task. For heavy material removal on thick steel, a coarse, ceramic abrasive disc is your best friend. For finer work requiring more precision, a higher-grit disc will give you the control you need.
Think about your workpiece and the final look you want to achieve. Are you quickly knocking down a weld or carefully smoothing a delicate metal surface? Answering this question will point you toward the right combination of abrasive material, grit size, and disc type for successful results.
Key Features to Consider When Buying a Grinding Disc
Several key features significantly influence the performance of a grinding disc. First, the abrasive type plays a crucial role; zirconia alumina and aluminum oxide are favored for their durability, particularly on hard materials and stainless steel. Additionally, the disc size and thickness determine the compatibility with your angle grinder and the type of workpiece you plan to tackle.
Another important aspect is the grit size, as lower numbers indicate coarser abrasives, which are ideal for fast material removal, while higher numbers yield a smoother finish for polishing or deburring. Finally, RPM ratings must match your grinder specifications to ensure safety and optimum performance, making it essential to choose discs that suit both your tool and intended application.
Grit Sizes Explained: Coarse vs. Fine for Metal Work
Understanding grit sizes is essential in optimizing grinding performance for metal surfaces. Coarse grit, identified by lower numbers like 24 to 60, is ideal for aggressive stock removal and shaping hard materials, including stainless steel and aluminum. The abrasive grains in coarse discs are larger, facilitating faster material removal, making them perfect for roughing and deburring tasks.
In contrast, fine grit, represented by higher numbers such as 80 to 120, is suited for polishing and finishing applications. These discs yield a smoother finish due to their closely packed, smaller abrasive grains, making them suitable for softer surfaces or finalizing workpieces. Choosing the right grit size can significantly influence the efficiency and effectiveness of your projects, ensuring optimal results whether you’re cutting, shaping, or deburring metal.
Tips for Using Grinding Discs Safely and Effectively
Using an angle grinder is powerful and satisfying, but safety must always be your top priority. The high speed of the abrasive disc can send sparks and debris flying, so wearing the right personal protective equipment (PPE) is essential. Always wear safety glasses, heavy-duty gloves, and a full face shield to protect yourself. Ensure your workpiece is securely clamped so it doesn’t move unexpectedly.
For effective use, let the grinder do the work. Applying too much pressure can damage the disc, overheat the metal, and cause dangerous kickbacks. For shaping metal, use a thick grinding wheel. If your goal is cutting, switch to a thin, specialized cutting disc. Using the right disc for the right job not only produces better results but also keeps you safer. Maintain a firm grip with both hands and keep the grinder’s safety guard in place at all times.

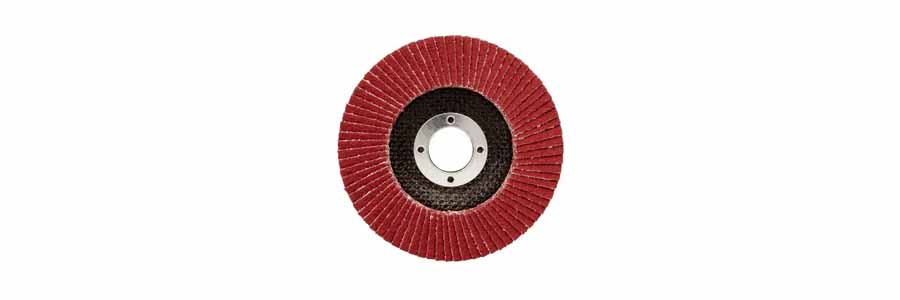

Looking for Manufacturers and Suppliers of Flap Discs?
FOXWOLL is a professional abrasive supplier in China. We specialize in providing a full range of abrasive products, including sandpaper sheets, rolls, discs, flap wheels, and other customized abrasive solutions. With advanced production technology and strict quality control, our abrasives offer excellent cutting efficiency, long service life, and consistent performance for woodworking, metalworking, automotive repair, and home DIY applications.
As a factory-based supplier, FOXWOLL supports OEM/ODM services, customized grit options, and various backing materials to meet different industry needs. Whether you are sourcing for wholesale, retail, or brand customization, FOXWOLL delivers stable quality, fast production, and reliable service to help customers grow their business in the global market.
Conclusion
In conclusion, selecting the best grinding disc for metal is essential for achieving optimal results in your projects. By understanding the key features such as material type, grit size, and RPM ratings, you can make informed decisions tailored to your specific needs. Whether you’re tackling rust removal or precision grinding, the right disc will enhance both safety and efficiency. Don’t overlook the importance of quality and compatibility with your tools to ensure a smooth workflow. Take the time to research and choose wisely, and you’ll be well on your way to successful metalworking outcomes. If you need assistance choosing the right grinding disc, feel free to reach out for a consultation!
Frequently Asked Questions
Can I use a diamond grinding disc on metal?
No, it is not recommended to use standard diamond discs on metal. Diamond abrasive grains are designed for cutting extremely hard materials like concrete, tile, and granite. When used on softer ferrous metals, the metal can clog the disc and cause it to overheat, quickly ruining it and providing poor results.
What grit is best for removing rust from metal?
For heavy rust removal, a coarse grit grinding disc (around 36 to 60 grit) is effective. The aggressive abrasive grains will strip away the corrosion quickly. Alternatively, a wire wheel attachment for your angle grinder is an excellent tool specifically designed for removing rust and paint without taking off too much base metal.
How often should I replace a grinding disc?
You should replace a grinding disc when you notice significant wear, a reduction in its diameter, or any signs of cracking or damage. The lifespan of attachments varies greatly based on the disc’s quality, the material you’re grinding, and usage pressure. Inspect your disc before each use for safety.
Is wet grinding better than dry grinding for metal?
Wet grinding can be better for achieving a smoother finish on metal, as the water cools the workpiece and reduces dust. However, dry grinding is far more common and convenient. If you choose dry grinding, always wear the proper safety gear, including respiratory protection, to manage dust and sparks.
Can I use an impact-rated bit on a grinding disc?
No, you should never attempt to use an impact-rated bit with a grinding disc. Angle grinder attachments are secured with a flange and nut system. Attempting to jury-rig a different type of bit creates a serious safety hazard due to a lack of compatibility and could cause the disc to fail catastrophically.
