Introduction
If your work involves shaping or cleaning aluminum, having the right tools is crucial. Grinding aluminum presents unique challenges compared to other metals, and using a standard grinding wheel can lead to poor outcomes and safety hazards. To get the best results, you need a wheel specifically designed for aluminum grinding. This guide will give you a quick look at everything you need to know, from the properties of aluminum to the types of wheels that will help you achieve a perfect finish on your project.
What Makes Aluminum Different From Other Metals?
Aluminum is one of the most common metals, but it behaves very differently from steel and other harder materials. As one of the soft metals, aluminum has a low melting point. The friction from a standard grinding wheel generates heat, which can cause the aluminum to melt. This melted material then sticks to the abrasive surface of the wheel, a problem known as “loading” or clogging. Once a wheel is loaded with aluminum, it loses its ability to grind effectively.
This clogging is the primary reason standard grinding wheels fail when used on aluminum. Instead of the abrasive grains cutting the workpiece, you end up with aluminum rubbing against aluminum. This not only ruins your surface finish but also generates excessive heat. At high pressure and without low temperatures maintained by a proper wheel, the grinding disc can even overheat and potentially break apart, creating a serious safety risk. This makes choosing the right tools for different materials essential.
Factors to Consider When Selecting a Grinding Wheel for Aluminum
When you’re ready to start grinding aluminum, selecting the correct grinding wheel is your first and most important step. Unlike steel, aluminum requires a wheel that can handle its soft nature without clogging. The right wheel will make your job easier, safer, and produce a much better result.
You need to consider the abrasive material, any special coatings, the wheel’s hardness, and its bond type. Each of these factors plays a role in how the wheel performs, from the rate of material removal to the quality of the surface contact. Let’s explore what you should look for in each of these areas.
Abrasive Material
Selecting the right abrasive material is crucial for effective aluminum grinding. Aluminum oxide particles are often preferred due to their good stock removal rate and ability to operate at lower temperatures, minimizing the risk of thermal damage to workpieces. These materials are ideal for both rough grinding and finishing operations, providing a balance between aggressiveness and surface smoothness.
Zirconia alumina is another excellent option, offering durability against heavy stock removal while maintaining cooler cutting conditions. Conversely, ceramic alumina delivers enhanced performance for more demanding aluminum projects, ensuring a consistent grinding surface with greater longevity. Whether utilizing resin fiber discs or flap wheels, understanding the properties of your abrasive material will significantly impact your overall results and operational efficiency.
Coating / Treatment
Yes, many grinding wheels are designed with special coatings or treatments specifically for aluminum grinding. These treatments are often lubricants or chemical aids infused into the wheel itself. As the wheel grinds, the friction generates heat that melts the coating, which then acts as a lubricant. This process significantly reduces heat and prevents the soft aluminum from sticking to the abrasive grits.
This built-in lubrication is a game-changer, as it helps the wheel cut cooler and more efficiently. You’ll find this feature in various types of wheels, including some resin fiber discs, which are known for cooler cutting. The coating essentially creates a barrier between the metal and the abrasive, allowing for smooth material removal without the constant headache of a clogged wheel.
When you see a wheel marketed as “non-loading” or specifically for “non-ferrous metals,” it likely has one of these special treatments. This makes it a far superior choice for aluminum compared to a standard, untreated wheel.
Wheel Hardness
Wheel hardness refers to the strength of the bond holding the abrasive grains together, not the hardness of the grains themselves. When selecting a grinding disc for aluminum versus steel, this is a critical distinction. For hard metals like steel, you typically use a harder wheel. However, for soft metals like aluminum, a softer-bonded wheel is often the better choice.
A softer bond allows the abrasive grains to break away more easily as they become dull. This process exposes new, sharp grains, creating a self-sharpening effect that prevents the wheel from loading with aluminum particles. If the bond is too hard, the dull grains will remain, causing the wheel to rub and generate excessive heat, which leads to clogging.
Therefore, you should look for a grinding wheel with a soft to medium hardness rating. This ensures that you are consistently working with the best abrasive surface possible, allowing for efficient grinding and a better finish on your aluminum workpiece.
Bond Type
The bond type is the adhesive that holds the abrasive particles together in the grinding wheel. For aluminum, a resin bond is the most common and effective choice. Resin bonds are designed to wear away at a controlled rate, which complements the self-sharpening nature of the abrasives needed for soft metals.
You will find resin bonds used in many types of wheels, including depressed center wheels and resin fiber discs. Resin fiber discs are an especially great option because the abrasive particles are bonded to the backing with resin, a method that promotes cooler cutting and offers versatility for different operations.
Choosing the right bond type is the best method for ensuring your wheel performs as expected. A resin bond provides the right balance of durability and controlled wear, helping to prevent the loading and overheating that are common issues when grinding aluminum. This allows you to work more efficiently and achieve a smoother result.
RPM Compatibility
One of the most important safety factors is ensuring your grinding wheel’s RPM compatibility with your tool. Every grinding wheel has a maximum safe operating speed printed on its label. You must make sure this RPM rating is higher than the maximum RPM of your tool, whether you’re using an angle grinder, die grinder, or bench grinders.
Exceeding the wheel’s maximum RPM is extremely dangerous. The immense rotational force can cause the wheel to fracture and explode, sending sharp fragments flying at high speeds. This poses a severe risk of injury. Before you even begin your project, double-check that your wheel and tool are a match.
This simple check is a critical safety precaution. Along with RPM compatibility, always use the proper safety gear, including safety glasses, gloves, and a respirator. Taking these steps ensures you can focus on your work without putting yourself in unnecessary danger.
Types of Grinding Wheels Designed for Aluminum
Not all grinding wheels are created equal, especially when it comes to working on metallic surfaces like aluminum. Several types of wheels are specifically designed to handle the unique properties of this soft metal. Choosing the best disc for your application depends on whether you need to remove a lot of material, prepare a surface, or achieve a fine finish.
From aggressive hard wheels to flexible flap discs, each type offers distinct advantages. Understanding these different options will help you select the most effective tool for your project. Below, we’ll explore some of the most common types of wheels used for aluminum.

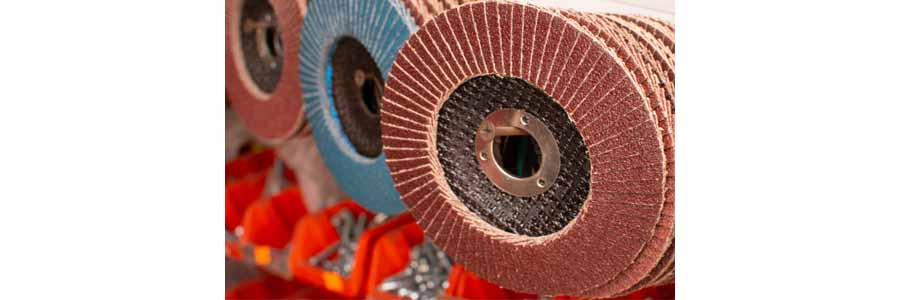

Flap Discs
Flap discs stand out as versatile tools ideal for aluminum grinding tasks. With their depressed center design, these discs excel in both material removal and finishing operations. The layered construction allows for excellent dust control while producing a smooth surface finish. Flap discs typically feature aluminum oxide or zirconia alumina abrasive particles, which can handle the softer nature of aluminum effectively. For those tackling various aluminum projects, flap discs represent a great option, combining efficiency with the ability to maintain lower temperatures during operation.
Hard Grinding Wheels
Hard grinding wheels are excellent tools designed for heavy stock removal and finishing operations. Made from durable abrasive materials like aluminum oxide or silicon carbide, these wheels ensure effective grinding on tough surfaces, including stainless steel and tool steel. Their robust construction allows for prolonged use, even under high-pressure conditions. Utilizing a depressed center design, hard grinding wheels provide enhanced surface contact and help achieve a smooth finish. Whether working on aluminum projects or other metals, they guide you towards achieving the best results while maintaining efficiency.
Wire Wheels
Wire wheels serve as an excellent option for surface preparation and metal cleaning tasks. Designed to tackle abrasive surfaces, these wheels efficiently remove aluminum dust and contaminants while minimizing heat buildup. A wire wheel’s ability to maintain lower temperatures during use makes it a top choice for delicate aluminum projects. Moreover, incorporating safety gear is crucial when using wire wheels to prevent metal fume fever from the fine particles produced. With various grit numbers available, selecting the right wire wheel can enhance your material removal experience.
Non-Woven Grinding Wheels
When it comes to finishing operations on soft metals like aluminum, non-woven wheels are a superb choice. These wheels are constructed from a web of nylon fibers that are bonded together and impregnated with abrasive grains. This open, sponge-like structure is what makes them special and highly effective for surface preparation and finishing.
Unlike denser wheels, the open web of non-woven wheels resists loading and clogging, which is a major advantage when working with aluminum. The flexible nature of the material allows it to conform to the contours of your workpiece, making it perfect for blending, cleaning, and achieving a uniform, satin finish without gouging the metal.
These wheels are not designed for heavy material removal. Instead, their strength lies in their ability to perform final finishing tasks. If you need to deburr, polish, or blend surface imperfections on your aluminum project, a non-woven wheel provides a controlled and gentle action that is perfect for the final touches.
Top Recommended Abrasive Materials for Aluminum
Choosing the best abrasive is fundamental to successfully grinding aluminum. The right abrasive material will cut efficiently, stay cool, and resist loading, which are the biggest challenges with this soft metal. While aluminum oxide is a common abrasive, other materials often provide superior performance on non-ferrous metals.
We’ll look at three of the top-performing abrasive materials for aluminum. Understanding the properties of silicon carbide, zirconia alumina, and ceramic alumina will help you select the perfect wheel for your specific needs, whether you’re doing aggressive grinding or fine finishing.
Silicon Carbide (SiC)
Silicon carbide is often considered a superior choice to aluminum oxide for grinding soft metals like aluminum. This is because silicon carbide abrasive grains are harder and sharper than aluminum oxide. This sharpness allows them to cut through aluminum cleanly and quickly with less pressure, which helps reduce heat buildup and the risk of melting.
The particles of silicon carbide are also more friable, meaning they fracture more easily to expose new, sharp cutting edges. This self-sharpening action is incredibly beneficial for aluminum grinding, as it continuously renews the cutting surface and prevents the wheel from “loading” or clogging with soft metal particles.
While aluminum oxide can work, it tends to dull faster on aluminum, leading to rubbing instead of cutting. For efficient, cool, and clean aluminum grinding, a silicon carbide wheel is typically the better and more effective option, delivering a better finish and a longer-lasting cutting action.

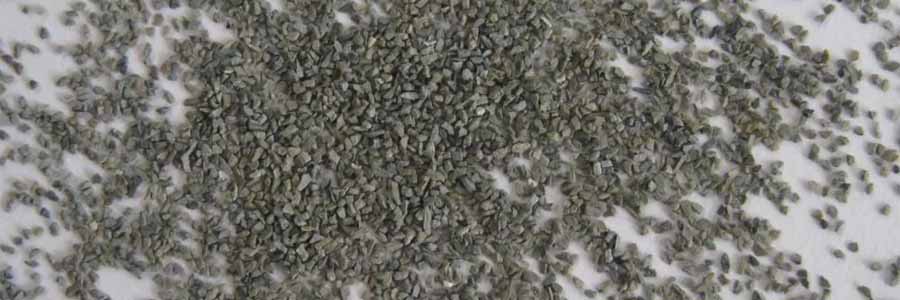

Zirconia Alumina (ZA)
Zirconia alumina, often abbreviated as ZA, is another excellent abrasive for aluminum, especially for medium- to coarse-grit applications. This material is a blend of zirconium oxide and aluminum oxide, creating an exceptionally tough and durable grain. It’s known for its ability to withstand high pressure and temperatures, making it suitable for demanding aluminum jobs.
The key benefit of zirconia alumina is its self-sharpening characteristic, which occurs under pressure. As the grain wears, micro-fractures expose new sharp edges, keeping the abrasive surfaces of the wheel cutting effectively for a longer time. This makes it a great choice for jobs requiring a good rate of stock removal on flat surfaces or edges.
You will often find zirconia alumina used in flap discs and resin fiber discs. Its durability and heat resistance make it the best abrasive for applications where both performance and longevity are important, allowing for aggressive grinding without quickly wearing down.

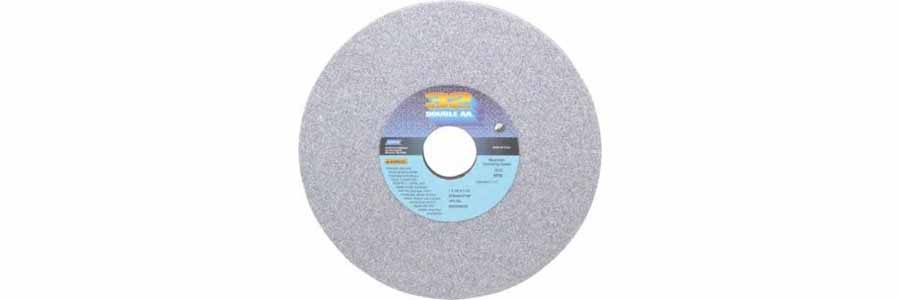

Ceramic Alumina
For the toughest grinding jobs, ceramic alumina is a top-tier abrasive. This is a high-performance, man-made abrasive known for its exceptional hardness and durability. The micro-crystalline structure of ceramic alumina grains allows them to fracture in a controlled manner, constantly exposing sharp new cutting points. This means the grinding disc stays sharp for a long time.
This self-sharpening action makes ceramic alumina ideal for heavy stock removal and high-pressure applications. When you need to remove a lot of material quickly, a ceramic alumina wheel will outperform many other abrasives. It delivers aggressive, fast cutting and has a very long service life, which can make it cost-effective for heavy-duty work.
Because it excels under pressure, it’s a great choice for grinding aluminum in industrial settings or any situation that requires sustained, aggressive performance. If you need a wheel that can handle intense work without frequent replacement, ceramic alumina is an outstanding option.
Best Grinding Wheel Grit for Aluminum
Selecting the ideal grit size is crucial for achieving the best results in aluminum grinding. Grit numbers refer to the size of the abrasive particles on the wheel—the lower the number, the coarser the grit, and the more material it removes. Higher grit numbers indicate a finer abrasive, which is used for creating a smooth surface finish. The right grit depends entirely on your goal. For heavy material removal, start with a coarse grit. For finishing, use a finer grit.
For most aluminum applications, a range between 36 and 80 grit is common. You might start with a 36 or 40 grit for aggressive stock removal and then move to a 60 or 80 grit for blending and finishing. Using the correct progression of grit numbers will give you a professional-quality result.
Grit Number | Application | Result |
24 – 40 | Heavy Stock Removal | Rough surface, fast material removal |
60 | General Purpose Grinding/Blending | Medium finish, balances removal and smoothness |
80 – 120 | Finishing and Cleaning | Smooth surface finish, light material removal |
Common Mistakes to Avoid When Grinding Aluminum
When grinding aluminum, a few common mistakes can lead to poor results, damaged materials, and safety hazards. The biggest error is using a grinding wheel meant for steel or other hard metals. Standard wheels clog up because aluminum’s low melting point causes it to melt from friction and stick to the abrasive, a process called loading. This makes the wheel ineffective and dangerous.
Another mistake is applying too much pressure. It’s tempting to push harder to work faster, but this only generates more heat, increases loading, and can gouge the soft aluminum surfaces. A light touch is far more effective. Also, avoid cross-contaminating your wheels. Never use a wheel on aluminum that has been used on other different materials, like steel. Particles from the steel can embed into the aluminum, causing corrosion and compromising weld integrity.
Safety Tips When Grinding Aluminum
Protective measures play a crucial role in ensuring a safe grinding environment when working with aluminum. Always wear safety gear, including goggles and gloves, to shield against flying aluminum dust particles. Utilizing a well-ventilated workspace significantly reduces the risk of inhaling potentially harmful fume emissions related to metal grinding processes.
Selecting appropriate grinding tools is equally important. Opt for a grinding wheel specifically designed for aluminum, which incorporates aluminum oxide particles or silicon carbide. This choice minimizes heat generation and keeps temperatures lower during use, reducing the risk of deformation. Maintain a light touch while grinding to promote smooth surface preparation and achieve the best results without excessive pressure. Regularly inspect equipment for wear and tear to prevent hazards during grinding operations.
How to Grind Aluminum Without Clogging: Pro Tips
Employing the right techniques can significantly enhance efficiency while grinding aluminum, minimizing the risk of clogging. One crucial strategy is to select a grinding wheel specifically designed for this soft metal, such as wheels imbued with aluminum oxide particles or zirconia alumina. Utilizing these materials allows for a good stock removal rate while maintaining lower temperatures, which is vital to prevent the formation of aluminum dust that leads to clogging.
Another effective method involves using a light touch throughout the grinding process. Applying shallow angles helps to create less heat and reduces pressure on the abrasive surfaces. Additionally, keeping the grinding surface clean by regularly removing residue not only protects the wheel’s integrity but also ensures a smoother finish on aluminum projects. Remember, proper safety gear is essential when performing any grinding tasks.
Looking for Manufacturers and Suppliers of Grinding Wheels?
FOXWOLL is a professional abrasive supplier in China. We specialize in providing a full range of abrasive products, including sandpaper sheets, rolls, discs, flap wheels, and other customized abrasive solutions. With advanced production technology and strict quality control, our abrasives offer excellent cutting efficiency, long service life, and consistent performance for woodworking, metalworking, automotive repair, and home DIY applications.
As a factory-based supplier, FOXWOLL supports OEM/ODM services, customized grit options, and various backing materials to meet different industry needs. Whether you are sourcing for wholesale, retail, or brand customization, FOXWOLL delivers stable quality, fast production, and reliable service to help customers grow their business in the global market.
Conclusion
In summary, selecting the right grinding wheel for aluminum can significantly enhance your efficiency and produce better results. Understanding the unique properties of aluminum and how they interact with different wheel types is crucial. With factors like abrasive material, coating, hardness, and bond type in mind, you can make informed decisions that meet your specific needs. Remember to avoid common mistakes and prioritize safety for an effective grinding experience. If you’re still unsure about which grinding wheel to choose, feel free to reach out for personalized advice or consultation to ensure you get the best results in your projects.
Frequently Asked Questions
Can I use the same grinding wheel for aluminum and steel?
No, you should never use the same grinding wheel for aluminum and steel. Wheels for steel are too hard and will quickly clog with aluminum. Furthermore, using a steel-contaminated wheel on aluminum can embed iron particles, causing corrosion. For the best results and safety, always use a separate, dedicated grinding wheel for different materials.
What tips help prevent aluminum loading up on grinding wheels?
To prevent aluminum loading, use a light touch and avoid excessive pressure. The best way is to choose a grinding wheel with a soft bond and a sharp abrasive material like silicon carbide. Using a wheel with a special anti-clog coating or applying a grinding lubricant can also significantly reduce heat and prevent clogging.
Are there brands that make top-rated aluminum grinding wheels?
Yes, several reputable brands produce high-quality aluminum grinding wheels. Brands like Bullard are known for durable cutoff and depressed-center wheels. Products from manufacturers like Weiler Abrasives, such as their specialized flap discs, are also a great option. Choosing a trusted brand ensures you get the best disc for your needs.
