Introduction
Have you ever wondered how the simple screwdriver in your toolbox is made? This common hand tool, essential for everything from assembling furniture to intricate electronics repair, goes through a surprisingly complex screwdriver manufacturing process. While there are many different types of screwdrivers, from the classic slotted to the Phillips head designed for a power tool, the journey from raw material to a finished product involves multiple detailed steps. This guide will walk you through each stage, revealing the engineering behind this indispensable tool.
Overview of the Screwdriver Production Process
The manufacturing process of a screwdriver is a fascinating blend of metallurgy, chemistry, and precision engineering. It all starts with large coils of steel wire and powdered plastic. The main steps involve transforming these basic materials into a durable and functional tool. The steel is cut, shaped, and hardened, while the plastic is molded into an ergonomic handle. With over thirty different types of screwdrivers available today, the specific processes can vary slightly, but the core principles remain the same.
Essentially, the screwdriver production journey can be broken down into several key stages. These include raw material selection, steel cutting and forming, heat treatment for strength, tip machining for precision, surface treatment for protection, handle manufacturing, assembly, and finally, quality control and packaging. Each step is critical to ensuring the final screwdriver is reliable, strong, and ready for any task you throw at it.
Step 1 – Raw Material Selection
Choosing the right raw materials is the foundational step in creating a high-quality screwdriver. The primary components are steel wire, which forms the bar or shaft of the tool, and plastic, typically cellulose acetate, used for the handle.
The process begins with massive coils of steel wire, sometimes weighing as much as 3,000 pounds. For the handle, a solid piece of cellulose acetate is produced from a powder form. These materials are selected for their strength, durability, and ability to be shaped and treated to meet specific performance standards.

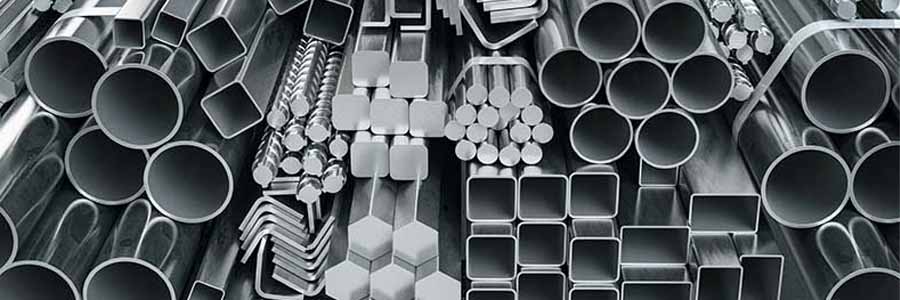

Steel Materials Used for Screwdrivers
The choice of steel is paramount in the screwdriver manufacturing process. The bar of the screwdriver must be strong enough to turn metal screws without bending or breaking. Typically, a high-quality steel wire is the starting point for these essential hand tools.
Different alloys can be used depending on the intended application and quality of the tool. Common choices include tool-grade steel (like S2), chromium-vanadium-molybdenum (CVM) tool steel, and even stainless steel for corrosion resistance. For specialized environments where sparks are a hazard, non-sparking metals may be used.
Ultimately, the steel selected must have the right properties to withstand the torque and pressure applied during use. This ensures the screwdriver performs reliably and has a long service life, making it a trustworthy addition to any toolkit.
Steel Quality Requirements
Ensuring high steel quality is non-negotiable in the screwdriver manufacturing process. The performance of the final tool depends entirely on the integrity of the steel used. The wire must be drawn to a precise diameter and possess the correct tensile strength to handle rigorous use.
During the initial stages, the steel wire is annealed, a heat treatment process that prepares the metal for shaping. This step is critical for achieving the desired hardness and durability. Any inconsistencies in the steel’s composition or treatment can lead to a weak and unreliable screwdriver.
Manufacturers maintain strict standards throughout production to guarantee steel quality. From the initial drawing of the wire to the final heat treatment, every stage is monitored to ensure the finished screwdriver can withstand the forces of turning screws without deforming or failing.

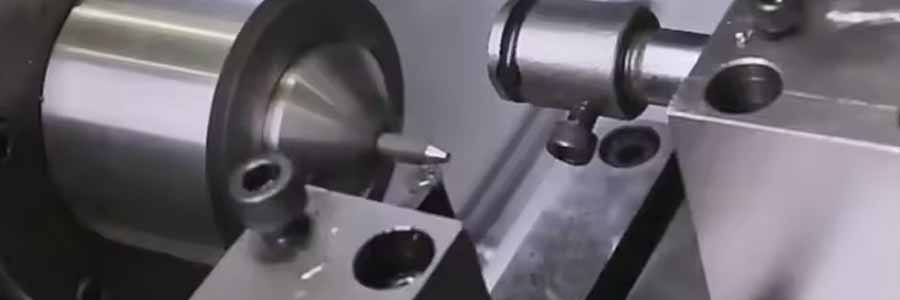

Step 2 – Steel Cutting and Forming
In the steel cutting and forming stage, precision is key. Raw materials like coils of green wire are fed into a cold forming press, where they are shaped into the desired screwdriver geometry. Hydraulic presses and turning machines often play a vital role here, refining the material into solid pieces. This step ensures the manufacturing process maintains high quality, setting the foundation for different types of screwdrivers, including both slotted and Phillips models, available today in a variety of sizes.
Forging Process
Forging begins the transformation of steel into reliable hand tools like screwdrivers. Steel wire is heated to high temperatures, often between 1,600 to 2,200 degrees Fahrenheit, making it malleable. This heated metal is then shaped using hydraulic presses or swage dies, creating the screwdriver shank with precision. The process ensures a strong, quality tool that can withstand various tasks. By controlling the grain structure, manufacturers enhance durability, making the screwdrivers well-suited for both home handyman projects and professional use.
Shaft Shaping
After the initial cut, the screwdriver shaft, also known as the shank or spindle, undergoes further shaping. This step is crucial for creating the specific type of screwdriver tip, whether it’s a flat-head or a Phillips.
For flat-tip screwdrivers, the process is relatively straightforward after the cold forming press. However, for a Phillips head, the bar is sent to a “swage and grind” operation. Here, dies use heated wire to form the cross-shaped blades of the tip. The tool is then ground to refine the shape and create the wings.
This differentiation in shaping is a key distinction in the manufacturing process and highlights how automation is used to create complex designs efficiently. While professional models may receive more hands-on grinding, automated machines handle the bulk of the shaping for consistency and speed.

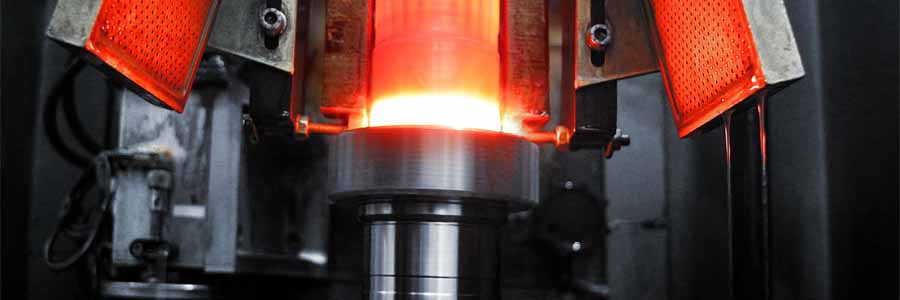

Step 3 – Heat Treatment Process
The heat treatment process is a critical step that gives the screwdriver its strength and durability. After the steel bar is formed, it is passed through an in-line furnace heated to approximately 1,555 degrees Fahrenheit. This intense heat alters the metal’s internal structure.
As the bars exit the furnace, they are immediately dropped into an oil quench to cool rapidly. This sudden cooling locks in the hardness. Afterward, they are placed in another oven and baked at a lower temperature to achieve the final, specified hardness, ensuring the tool won’t chip or break under pressure.
Hardness Control
Controlling the hardness of the steel is a delicate balancing act. The goal of heat treatment is to make the screwdriver bar hard enough to resist wear and deformation but not so hard that it becomes brittle and prone to snapping. This balance is crucial for the tool’s performance and safety.
The process involves two main stages. First, heating the steel to a high temperature followed by a rapid quench makes it extremely hard. However, in this state, it’s too brittle. This is where the second stage, tempering, comes in.
The bars are “drawn back” by baking them in an oven at a lower temperature, typically between 450 and 500 degrees Fahrenheit. This step reduces the brittleness while retaining most of the hardness, resulting in a tough, durable tool that has good machinability and can withstand the rigors of daily use.
Heat Treatment Equipment
In the heat treatment stage, specialized equipment plays a crucial role in enhancing the durability of screwdrivers. Furnaces, designed to reach high temperatures in degrees Fahrenheit, are used to perform processes like oil quenching, which hardens the metal. This step ensures that the screwdriver tips maintain their shape and resist wear over time. Additionally, a nickel flash bath adds a protective layer, preventing corrosion. Proper management of these machines is vital for achieving consistent quality and ensuring each tool performs its best during use.
Step 4 – Tip Machining and Precision Grinding
Once hardened, the screwdriver tip undergoes precision machining and grinding to ensure it fits perfectly into a screw head. For professional models, this involves a dedicated tipping operation. An automatic tipping machine creates the bullet point for a Phillips screwdriver.
The bar then moves to a profilator machine, which cuts the four grooves or slots that give the Phillips tip its characteristic shape. For flat-head a professional model, the tip is often ground to size by hand. This meticulous grinding ensures sharp, clean edges for optimal grip and torque transfer.
Magnetizing Process
A critical step in enhancing the functionality of screwdrivers is the magnetizing process. This technique involves passing an electric current through the screwdriver tip, aligning the magnetic domains within the steel. As a result, the screwdriver becomes magnetized, allowing it to attract and hold metal screws securely. This convenient feature is particularly appreciated by home handymen and professionals alike, making assembly tasks easier and more efficient. Just imagine effortlessly picking up screws with your screwdriver that’s the magic of magnetization!
Step 5 – Surface Treatment
After the bar has been shaped and heat-treated, it receives a surface treatment. This step is not just for looks; it provides a crucial layer of anti-corrosion protection. The type of treatment often depends on the intended quality and use of the screwdriver.
For many consumer-grade screwdrivers, the bar is plated with nickel. Professional models often receive a more robust treatment, such as a combination of nickel and chrome plating. This protective coating prevents rust and ensures the tool has a long lifespan, even when exposed to moisture.
Anti-Corrosion Protection
Providing effective anti-corrosion protection is key to a screwdriver’s longevity. Without it, the steel bar would be susceptible to rust, which can weaken the tool and compromise its performance. The most common method of protection is plating.
Consumer model screwdrivers are typically nickel-plated. The process involves immersing the steel bar in a nickel solution to give it a protective coating. This offers a good level of resistance to rust and wear for general household use.
For professional models that see more demanding use, a more durable two-step process is employed. The bar is first put into a nickel flash bath and then electrically chrome plated. This dual plating of nickel and chrome provides superior hardness and corrosion resistance, ensuring the tool remains in excellent condition for years.

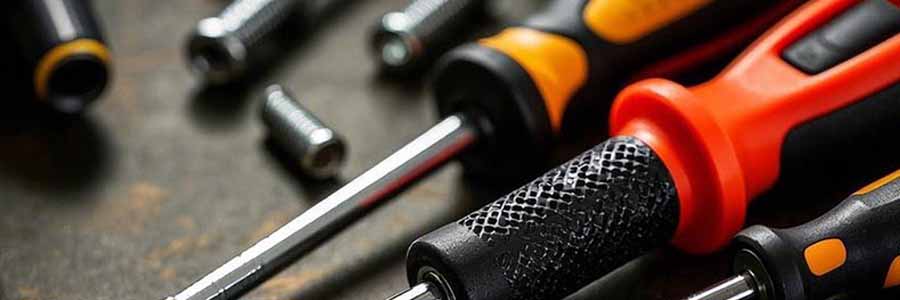

Step 6 – Screwdriver Handle Manufacturing
Manufacturing the screwdriver handle is a crucial step that significantly affects the tool’s usability. Typically crafted from materials like cellulose acetate, these handles are molded to fit comfortably in the hand. This process often involves the use of a second extruding machine and molds to ensure precision. A skin card machine helps finalize the appearance, maintaining a balance between aesthetics and functionality. Various colors and pigments can be added, allowing a wide range of styles for consumer model screwdrivers available today.
Injection Molding
Injection molding is the primary method for creating screwdriver handles. The process begins by mixing cellulose acetate rosin powder with a liquid plasticizer in a large blender. If a colored handle is desired, pigments are also added at this stage. The resulting mixture has the consistency of thick cake batter.
This paste is fed into an extruder, which forms it into a solid piece of cellulose acetate that is then cut into small pellets. These pellets are then fed into a second extruder, which melts them and forces the liquid plastic into handle-shaped molds under high pressure. For two-color handles, a second extruding machine can be connected to the first.
Once cooled, the plastic solidifies into the final handle shape. This automated process allows for the mass production of consistent, durable handles. Some assembly processes may even use hydraulic presses to force the steel bar into the freshly molded handle.
Ergonomic Handle Design
A great screwdriver feels good in your hand, and that’s no accident. Significant thought goes into the ergonomic handle design to ensure it provides both comfort and maximum turning power. The design varies depending on the intended user.
A professional who uses a tool for hours a day might need a handle with a rubber cap for extra comfort and to reduce fatigue. The shape of the handle itself is also critical. A broad handle with deep grooves can offer superior grip and torque, allowing you to tighten or loosen stubborn screws with less effort.
On the other hand, a home handyman who only uses a screwdriver occasionally may not require these advanced features. The handle design is tailored to balance cost, comfort, and performance, ensuring there’s a right fit for every type of user.
Step 7 – Assembly Process
The assembly process brings the two main components—the steel bar and the plastic handle—together to create the finished screwdriver. The method of assembly often reflects the quality of the tool. High-end, professional models are typically assembled individually. A skilled operator uses a horizontal assembly machine that hydraulically presses the bar securely into the handle, ensuring a tight and durable fit.
In contrast, less expensive models are assembled more rapidly using automation. Hydraulic presses might assemble three screwdrivers at a time, while the most affordable versions can be assembled six at a time on a single machine. These automated systems are designed for high-volume production, highlighting the difference between manual oversight for professional tools and mass production for consumer markets.
Step 8 – Quality Control and Testing
To guarantee the quality of the tool, every screwdriver undergoes rigorous quality control and testing before it leaves the factory. This crucial step ensures that the product you receive is reliable, safe, and performs as expected.
The process includes a final inspection to check for any visual defects in the handle, plating, or tip. After the visual check, performance testing is conducted to verify the tool’s strength and durability. This comprehensive approach to quality control is what separates a great screwdriver from a poor one.
Incoming Inspection
To ensure high standards in screwdriver production, the incoming inspection phase is critical. During this stage, raw materials such as steel are meticulously assessed for quality, which directly impacts the durability and functionality of the final tool. Various tests, including hardness measurements and microscopic examination, verify that the steel meets the necessary specifications for applications ranging from consumer model screwdrivers to professional-grade tools.
Consistency is key; hence, materials are also evaluated for uniformity, which guarantees that every screwdriver tip is crafted from a solid piece of quality material. Additionally, the inspection process may involve checking for any surface defects or irregularities that could diminish performance. This thorough scrutiny ensures that only the finest materials proceed to the manufacturing process, ultimately enhancing the quality of the screwdriver.
Production Inspection
Quality assurance plays a pivotal role in the screwdriver manufacturing process, ensuring each tool meets the required performance standards. During production inspection, the manufactured screwdrivers undergo rigorous testing for functionality, durability, and visual defects. Advanced techniques, such as the use of hydraulic presses to evaluate the integrity of the screwdriver shank, and precision measuring tools, assess the diameter of the screwdriver tips, confirming they fit appropriately into screw heads.
In addition to mechanical testing, inspections focus on the quality of raw materials, verifying the properties of high-grade steel, cellulose acetate, and their respective resistance to wear. Overall, this meticulous attention to detail not only enhances the reliability of professional model screwdrivers but also upholds the market reputation of the manufacturer.
Final Inspection
The final inspection is a critical quality control checkpoint. Before a screwdriver is approved for packaging, it is carefully examined for any flaws that may have occurred during the manufacturing process. Inspectors look for a range of potential issues.
They check the quality of the plating to ensure it’s smooth and complete, as poor-quality plating can indicate a lack of care in production. The handle is inspected for cracks, excess material, or molding defects. Most importantly, the screwdriver tip is closely examined.
The tip’s edges and corners must be sharp and precise. A tip that was burned or improperly ground during the grinding process may have lost its hardness, making it ineffective. This meticulous inspection ensures that only top-quality tools make it to the customer.
Performance Testing
Beyond visual checks, performance testing is conducted to validate the real-world capabilities of the screwdriver. These tests are designed to simulate the stresses the hand tools will face during use, ensuring they meet strict durability and strength standards.
One of the most important tests is the torque test. A torque testing machine measures the maximum turning force the screwdriver can withstand before the tip or shaft begins to deform or break. This test confirms that the heat treatment was successful and that the tool can handle tough jobs.
Other performance tests might include hardness tests on the tip and impact tests to ensure the handle doesn’t crack under pressure. By subjecting the screwdriver to these rigorous evaluations, manufacturers can confidently guarantee the tool’s reliability and long-term performance.

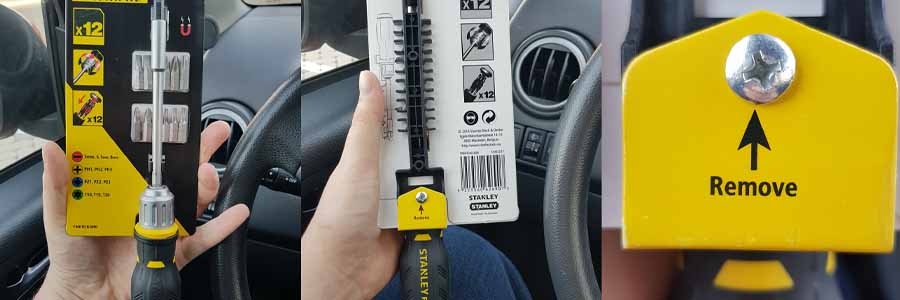

Step 9 – Screwdriver Packaging Process
The packaging process is essential to ensure screwdrivers reach customers in perfect condition. Bulk packaging typically involves large quantities packed together, making it efficient for wholesalers. Retail packaging, on the other hand, focuses on eye-catching designs that highlight features like finesse in craftsmanship and durability, appealing to the everyday consumer or home handyman. Utilizing various styles ensures that shoppers can easily identify the right type of screwdriver from slotted to Phillips making the buying experience smooth and enjoyable.
Bulk Packaging
Once the screwdrivers are fully manufactured, bulk packaging plays a crucial role in preparing them for distribution. This process involves grouping the tools into large containers, which not only protects them during transport but also simplifies handling. Utilizing efficient techniques, such as horizontal assembly machines, ensures that every batch maintains consistent quality and minimizes damage. Bulk packaging serves as an effective solution for retailers and wholesalers, allowing them to store and transport various types of screwdrivers effortlessly while streamlining supply chain operations.
Retail Packaging
Detailed attention is paid to retail packaging, ensuring products stand out on store shelves. Eye-catching designs and informative labeling play vital roles in attracting consumers, providing essential information about each screwdriver type. From phillips to slotted screwdrivers, clear visuals and descriptions enhance customer experience while simplifying their purchasing decisions. Innovative materials, like cellulose acetate, offer durability, while eco-friendly options reflect modern consumer values. This combination fosters trust, ultimately influencing the quality perception of the tools inside the packaging.
Custom Packaging Options
For brands that want to stand out or require specific packaging solutions, factories offer custom packaging options. This allows a company to tailor the screwdriver packaging to its unique branding, marketing strategy, or functional needs.
Customization can involve everything from the design of the backing card to the type of plastic used. A company might want to create a screwdriver set packaged in a branded, reusable case, or design a unique box for a promotional giveaway. The packaging can be printed with logos, specific instructions, or marketing messages.
This level of personalization is a key part of OEM services, where a factory produces screwdrivers on behalf of another brand. The ability to create custom packaging helps these brands launch their products with a distinct identity, making them easily recognizable to consumers.
Looking for Manufacturers and Suppliers of Screwdriver?
FOXWOLL is a professional hand tool company in China. We can provide you with professional screwdriver products and related services. With strong in-house manufacturing capabilities and years of industry experience, FOXWOLL specializes in the design, production, and supply of a wide range of screwdrivers, including precision screwdrivers, insulated screwdrivers, multi-bit sets, and customized tool solutions. All products are made using high-quality materials and strict quality control standards to ensure durability, safety, and reliable performance. In addition to product manufacturing, FOXWOLL offers comprehensive services such as OEM/ODM customization, private-label packaging, and flexible bulk supply. Serving global distributors, brands, and wholesalers, we are committed to delivering consistent quality, competitive pricing, and professional support to help our partners succeed in the international hand tool market.
OEM Screwdriver Manufacturing Options
Exploring OEM screwdriver manufacturing options opens the door to a variety of customization possibilities. Businesses can tailor their products with specific screwdriver tips, including Phillips and slotted designs, ensuring compatibility with different screw heads. Additionally, choice of materials, like durable cellulose acetate for handles, enhances user comfort and functionality. With options like private labeling and packaging solutions, companies can create unique offerings tailored to their target market, engaging both home handymen and professionals alike.
How to Identify a Professional Screwdriver Factory
Finding a professional screwdriver factory involves looking for a few key indicators of quality and reliability. A reputable manufacturer will be transparent about its manufacturing process, from the raw materials used to the final assembly. They should have a robust quality control system in place, including both final inspections and rigorous performance testing. Look for certifications or adherence to industry standards, as this demonstrates a commitment to quality.
When searching for a manufacturer, check their capabilities for customization, their production capacity, and their communication. A professional factory will work with you to meet your specifications and provide clear information about their processes. Reading reviews, asking for samples, and inquiring about their existing clients can also provide valuable insight into their reputation and the quality of their work.
Advantages of Factory Direct Screwdriver Manufacturing
Choosing factory-direct screwdriver manufacturing offers several significant advantages for businesses. The most obvious benefit is reduced costs. By eliminating middlemen and distributors, you can purchase tools at a lower price point, which can increase your profit margins or allow you to offer more competitive pricing to your customers. This direct line of communication also simplifies the ordering and customization process.
Furthermore, working directly with a factory gives you greater control over quality. You can specify the exact materials, heat treatment processes, and quality control standards you require. This direct oversight ensures that the final product aligns perfectly with your brand’s standards for performance and durability, resulting in a higher-quality tool for the end-user.
Conclusion
In conclusion, understanding the screwdriver manufacturing process is crucial for anyone interested in quality tools. From selecting the right raw materials to the intricate steps of forming, heat treatment, and precision grinding, each phase plays a vital role in producing a durable screwdriver. Quality control ensures that every tool meets rigorous standards before it reaches the consumer. Whether you’re a DIY enthusiast or a professional tradesperson, knowing how screwdrivers are made can help you make informed choices about the tools you use. If you’re looking for high-quality, customized screwdrivers that meet your specific needs, don’t hesitate to reach out for a consultation today!
